Turn Your Buildings into Smart Spaces

Be among the first to experience Cisco Spaces’ latest innovations—transforming the way people, things, and spaces interact.

Elevate efficiency, accelerate productivity, and champion sustainability, all while creating truly unforgettable experiences.

Sign up for our beta and limited availability apps today.

(In early field trials)

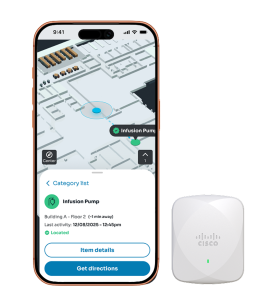

Be among the first to experience Cisco Asset Tracking, purpose-built for high-density Wi-Fi 7 environments. Instantly find, manage, and account for physical assets in your buildings using BLE and UWB based asset tags with long battery life, and a solution that seamlessly integrates into the Cisco ecosystem.

Designed for frontline teams, managed by IT

Wireless Infrastructure

  1. Catalyst WLC–managed APs (Internal Antennas)
    • AP models: 9176i, 9178i

WLC Software Requirements

  1. UWB Use case
    • Catalyst 9800 WLC running 17.18.2 or later
  2. BLE-only Use Case
    • Catalyst 9800 WLC running on 17.12.4, or 17.15.1

AP Deployment Density

Target density: 1 AP per 1000 sq ft (Recommended)

Spaces and IOT Services

  1. IoT Service enabled (BLE Scan/Dual Mode)
  2. Required services and versions:
    • IOX App: 7.21+
    • IoT Wireless: 2.1.19
    • Location Service: 2.3.33
    • Service Manager: 2.5.3

Cisco Spaces Infrastructure

Cisco Spaces Connector VM; Version: 3.2.0.32

Verizon will be Offering Carrier offload for select venues in FY 26.

Prerequisites and Infrastructure requirements

Latest Version of the Spaces Connector and Hotspot Service

(In early field trials) 

Get turn-by-turn directions to meeting rooms, desks, and other key points of interest—on your phone. No extra hardware, complex mapping projects, or app downloads are needed – just seamless navigation using your existing access points.  

Prerequisites for Indoor Navigation 

Wireless Infrastructure : 

  • Meraki APs : CW9166,CW9164,CW9162,CW9172,CW9176, CW9178, MR36,44,46,56,57 
  • MR 31.2 and above (Customer should be able to upgrade to latest/private versions) 

Ability to place Smart Signage (Cisco Board Pro/Pro2/ Pro 55/ Pro 75)  in the building lobby and on the floor   Cisco Spaces requirement: 

  • APs onboarded to Cisco Spaces account 
  • Have accurate CAD .dwg files for each deployment floor  

AP deployment density and placement on Cisco Spaces map:

  • AP deployment is done for location services (1 AP per 1000 sq. ft) 
  • APs accurately placed on the Cisco spaces map through Catalyst center/ AP auto-locate 

This feature introduces the ability to count employees based on wired device connections.

As part of this Early Field Trial, occupancy counting will specifically track users who connect their laptops through docking stations

Prerequisites for Wired 802.1x Occupancy

  • Switches supported: 9300 and 9400
  • Authentication has to be 802.1x
  • User ID has to be the same in wired and wireless
  • Docking station mode is supported, standalone desktops are not supported
  • Ability to turn off wireless when connected to wired to avoid duplicates

Sign up for early access today. 

Spots are limited, and availability will be confirmed based on eligibility. Our team will review your submission and get back to you.
